PROFILED SHEET

Nova Construction Products Limited offer a wide range of roof and wall profiled sheets to suit all applications.

Scroll Down

Profiles

Box profile is more commonly used in industrial and agricultural applications. 30/1000, 32/1000 and 34/1000 profiles give a 1m cover width.

Profiles are available in 0.5mm and 0.7mm thickness and are cut to the length you require, keeping waste to a minimum.

We supply box profile steel sheets in galvanized, polyester painted and plastic-coated finishes. Anti-condensation lined sheets and cranked sheets are also available.

JI PROFILED SHEET

JI 32/1000R

Screenshot 2020-10-28 at 14.07.47.png

JI 19/1000 Liner Panel

Screenshot 2020-10-28 at 14.14.14.png

CAF PROFILED SHEET

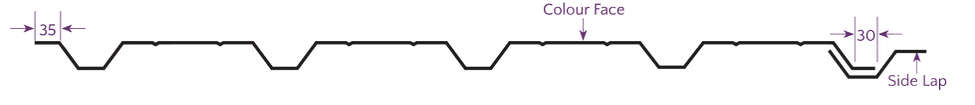

Wall Sheet 33/1000W

Wall Sheet 33:1000W.png

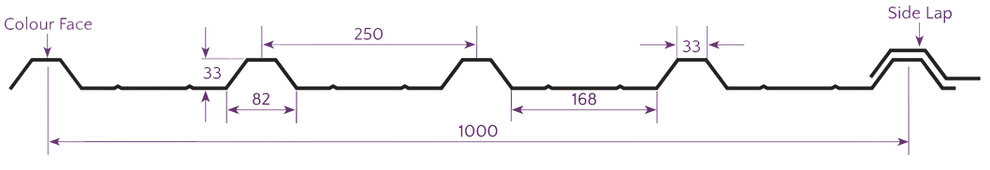

Roof Sheet 33/1000R

Roof Sheet 33:1000R.png

Wall Sheet 32/200/1000W Plain (No Swages)

Wall Sheet 32:200:1000W Plain (No Swages

Roof Sheet 32/200/1000R Plain (No Swages)

Roof Sheet 32:200:1000R Plain (No Swages

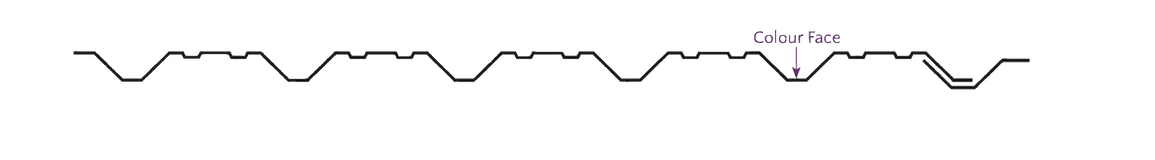

Wall Sheet 32/200/1000W Swaged

Wall Sheet 32:200:1000W Swaged.png

Roof Sheet 32/200/1000R Swaged

Roof Sheet 32:200:1000R Swaged.png

Liner Panel 19/1000

Liner Panel 19:1000.png

Liner Panel 19/1000 Without Swages

Liner Panel 19:1000 Without Swages.png

TPP Profiled Sheet

N1000 Profiled Sheet

N1000R

Screenshot 2020-10-28 at 13.19.52.png

N1000RR

Screenshot 2020-10-28 at 13.25.42.png

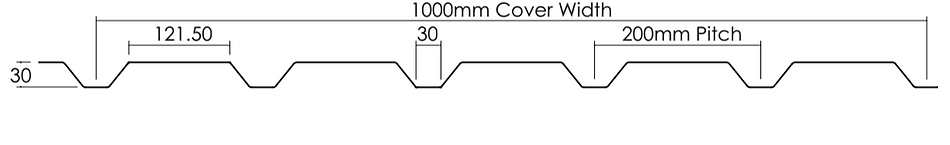

N1000C

Screenshot 2020-10-28 at 13.33.20.png

N1000CR

Screenshot 2020-10-28 at 13.36.56.png

TPP 1000-32 Forward

Screenshot 2019-09-14 at 22.35.49.png

TPP 1000-32 Forward No Ribs

Screenshot 2019-09-14 at 22.35.56.png

TPP 1000-32 Reverse

TPP 1000-32 Reverse.jpg

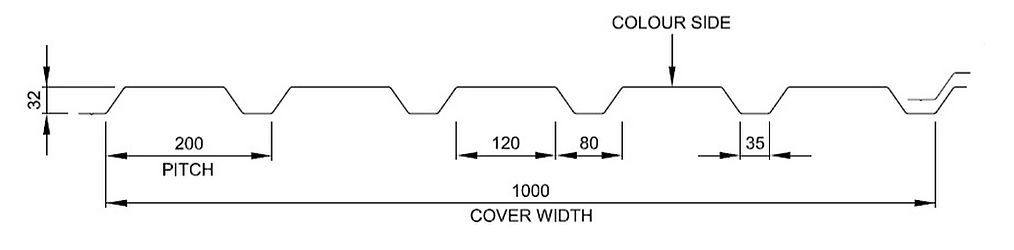

TPP 1000-32 Reverse No Ribs

TPP 1000-32 Reverse No Ribs.jpg

TPP Corrugated 14/3

Screenshot 2019-09-14 at 22.36.24.png

TPP 1000-19

Screenshot 2019-09-14 at 22.36.30.png

TPP 1000-32 Walkable Liner

Screenshot 2019-09-14 at 22.36.44.png

TPP Pro-Tile

Screenshot 2019-09-14 at 22.36.51.png

Fibre Cement Profiled Sheet is also available.

Standard Colours for Plastisol

Screenshot 2019-09-14 at 22.53.13.png
  • Other colours are available upon request.

  • The standard colour references shown above are the nearest equivalents.

  • The above colours are for guidance only. For a true representation of colour and texture please contact us on 07577 551171 or email us at novaconstructionproducts@gmail.com

  • If an exact match between cladding components is required, we recommend that all requirements are ordered together to ensure manufacture from the same material batch.
